Dettagli:
|
Tipo di prodotto: | Tensione costante | Voltaggio di onda: | 3.2Vp.p. |
---|---|---|---|
Valutazione IP: | Protezione IP44 | Funzione di attenuazione: | Sì |
Tensione di ingresso: | 120-240V | Dimensione: | 148*101*17.5 |
Tensione di uscita: | 12V CC | Grado IP: | Protezione IP44 |
Certificazioni: | UL/CCC/CE/TUV/SAA | Protezione: | Cortocircuito, Sovraccarico, Sovratensione |
potenza di uscita: | 40w | Protezione da sovraccarico: | - Sì, sì. |
Tasso IP: | Protezione IP44 | Corrente di output: | 1a |
Frequenza di ingresso: | 50Hz/60Hz | ||
Evidenziare: | Driver LED da 240v a 12v dc,Driver LED da 120v a 12v dc,Driver led ac dc da 30w |

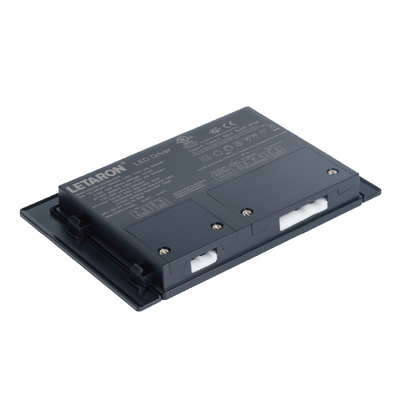

30W IP44 LED Global Driver For bathroom,100-277VDC to 12VDC Constant Voltage Output, LED Power Supply for Light Bar, String Light,UL Listed, TUV,CE,SAA,UKCA,UL
Short circuit, overload, overvoltage protection
Relay Integrated
Built-in Output Cable
100% Full Load Aging Test
Class 2
30,000 Hours Warranty
Waterproof: IP44
Passed TUV,CE,SAA,UKCA,UL certifications.
OEM and ODM is welcomed
Model: AED30-12VIP44-SGA
Power: 30W
Input Voltage: 100V-277V
Output Voltage: 12V
Current: 2.5A
Input Frequency: 50/60HZ
Power Factor: 86%
Dimension: 148*101.4*17.5mm
Certification: TUV,CE,SAA,UKCA,UL
